Deep Dive into the Confusing SharePoint 2013 MySite Quick Launch Left Nav

The Quick Launch (left nav) of SharePoint’s MySite Host (profile pages area) and personal sites (SkyDrive/MySite/My Content area) is a horribly confusing animal. The navigation changes completely depending on which page you are accessing, and it isn’t entirely clear how to manage the links, or which links appear for all users or just for ME. Definitely a point of confusion for our designers and customers. This post is the result of an internal discussion I started with our designers at Blue Rooster – hopefully you will find it of value to help understand better what you can expect to see in the Quick Launch in the different SharePoint 2013 social/personal areas, and where you might be able to customize it and add your own links.

Overview

The Quick Launch (left nav) of the MySite Host and Personal Sites is very confusing, and changes contextually as you click around different areas and pages. This post will attempt to explain what you see and where, and your options for adding shared and personal links to the navigation.

MySite Host Quick Launch – Self Viewing Self

Let’s start with the first scenario, where a user is viewing his/her own information on the MySite Host, for example on the Newsfeed or the About Me page. This is what the quick launch looks like in this scenario:

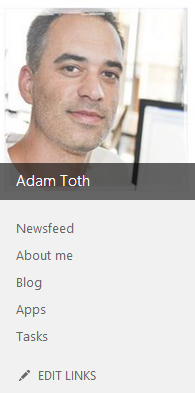

Default MySite Host Quick Launch

Default MySite Host Quick Launch.

The first two links are populated by default, Newsfeed and About Me. They link to pages in the MySite Host site collection:

  • Newsfeed: http://companyname-my.sharepoint.com/default.aspx
  • About Me: http://companyname-my.sharepoint.com/person.aspx

Those first two links are the only links that show up in Site Settings > Quick Launch in the MySite Host (you have to be an administrator/owner of the MySite Host site collection to access this). Notice in the screen below it only shows Newsfeed and About me, even though there are 5 total links in the quick launch:

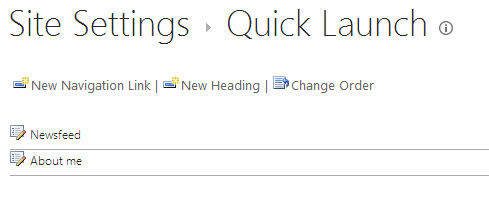

MySite Host Quick Launch

The quick launch settings for the MySite Host. Shared links can go here.

In the next screen, I have added a link to the Quick Launch through Site Settings > Quick Launch on the MySite Host. Notice where it appears, specifically that it appears above the Blog and Apps links:

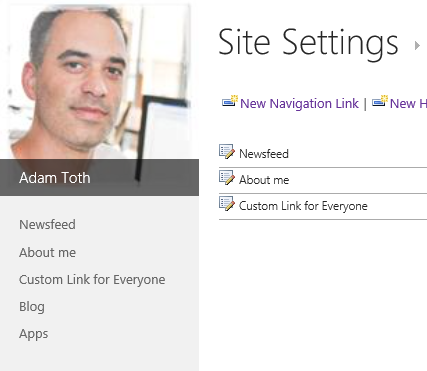

MySite Host Shared Links

A link that appears for all users added to the MySite Host Quick Launch.

Essentially what this means is that if you want to add shared links (links that appear for everyone) to the left nav, you can do this through Site Settings > Quick Launch, and these links will always be at the top of the Quick Launch, above the Blog/Apps links. You can reorder these shared links from Site Settings > Quick Launch page, for example, move About Me above the Newsfeed link, but you can’t move these shared links below Blogs/Apps or to the bottom of the quick launch (at least not without some client-side scripting on your MySite Host master page).

The Blog and Apps links are two entirely different animals. They are dynamically populated by SharePoint if the user has created a personal site (aka SkyDrive Pro, aka MySite). The links do not show up for users that have not created personal sites yet, or for users that do not have rights to create personal sites.

You cannot get rid of the Blog/Apps links without also getting rid of any of the shared links. The Blog and Apps links come from the same SiteMapDataSource that pulls in the shared links (the first SiteMapDataSource and AspMenu controls in the snippet below):

<SharePoint:SPNavigationManager
    id="QuickLaunchNavigationManager"
    runat="server"
    QuickLaunchControlId="V4QuickLaunchMenu"
    ContainedControl="QuickLaunch"
    EnableViewState="false">
    <SharePoint:delegatecontrol runat="server" ControlId="QuickLaunchDataSource">
        <Template_Controls>
            <asp:SiteMapDataSource SiteMapProvider="SPNavigationProvider" ShowStartingNode="False" id="QuickLaunchSiteMap" StartingNodeUrl="sid:1025" runat="server" />
        </Template_Controls>
    </SharePoint:delegatecontrol>
    <SharePoint:aspmenu id="V4QuickLaunchMenu" runat="server" EnableViewState="false" DataSourceId="QuickLaunchSiteMap" UseSimpleRendering="true" Orientation="Vertical" StaticDisplayLevels="2" AdjustForShowStartingNode="true" MaximumDynamicDisplayLevels="0" SkipLinkText="" />
    <div id="js-mysite-userquicklaunch" style="display: none; ">
    	<SharePoint:delegatecontrol runat="server" ControlId="MySiteUserQLDataSource">
	        <Template_Controls>
                <asp:SiteMapDataSource SiteMapProvider="SPNavigationProvider" ShowStartingNode="False" id="MySiteUserQLSiteMap" StartingNodeUrl="sid:1025" runat="server" />
            </Template_Controls>
        </SharePoint:delegatecontrol>
        <ContentTemplate>
            <SharePoint:aspmenu id="MySiteUserQLMenu" runat="server" EnableViewState="false" DataSourceId="MySiteUserQLSiteMap" UseSimpleRendering="true" UseSeparateCss="false" Orientation="Vertical" StaticDisplayLevels="2" MaximumDynamicDisplayLevels="0" SkipLinkText="" />
		</ContentTemplate>
    </div>
</SharePoint:SPNavigationManager>

If you remove this from your master page, you’ll also remove the shared links (Newsfeed, About Me, etc.). It is really unfortunate that Microsoft did not decouple these, because many of our customers are not interested in using SharePoint’s (crappy) blog implementation, and want to hide that link, which is not possible without either disabling personal site creation (thereby removing social features), or resorting to Javascript DOM manipulation. If you are on-prem, you could write your own SiteMapDataSource, but you are stuck on Office365/SharePoint Online.

The Blog and Apps links go to the following locations:

  • Blog: https://companyname-my.sharepoint.com/_layouts/15/MySite.aspx?Blog=1
  • Apps: https://companyname-my.sharepoint.com/personal/username_domainname/_layouts/15/viewlsts.aspx

The Tasks link that appears underneath Blog/Apps is yet a third unique element in the MySite Host quick launch. The Tasks link actually comes from your personal site. If you click on SkyDrive in the Suite Bar (top nav), and then go to Site Settings > Quick Launch, you’ll see a link for Tasks. This link was placed here when your personal site was first created.

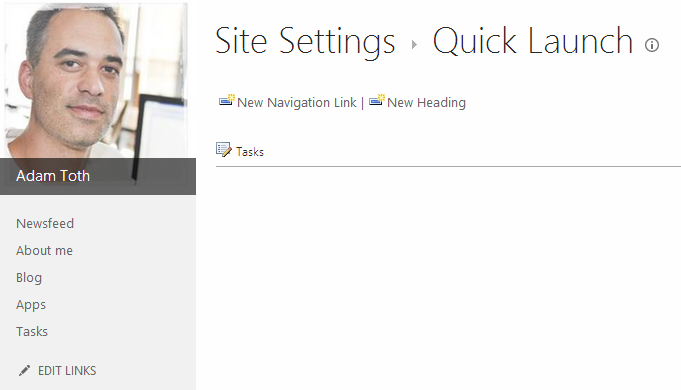

Quick Launch Settings in Personal Site

This screen shows the Quick Launch items in a personal site.

This means that everything under the Apps link comes from your personal site, and is customizable by you! As an individual, you can add personalized links to the MySite Host Quick Launch simply by managing the Quick Launch settings of your personal site, and these links will only show for you. I’ve added a personalized link in the screen below, and also deleted the Tasks link from my personal site’s Quick Launch settings:

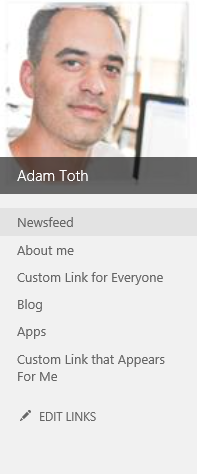

Personal-only link

The bottom link appears only for me.

In the Quick Launch, you’ll notice that at the bottom is the Edit Links control. This is visible to everyone that has a personal site created. Using this control, you can add links directly to your personal site’s Quick Launch without having to navigate directly to the Site Settings > Quick Launch page of your personal site. You can also use drag/drop to reorder the links, however if you try to drag/drop a link above the Blog/Apps links, it won’t let you. You can only drag/drop links at the bottom of the Quick Launch, amongst your personal links.

MySite Host Quick Launch – Self Viewing Other

In this scenario, we’ll look at the Quick Launch experience when viewing someone else’s profile page in the MySite Host:

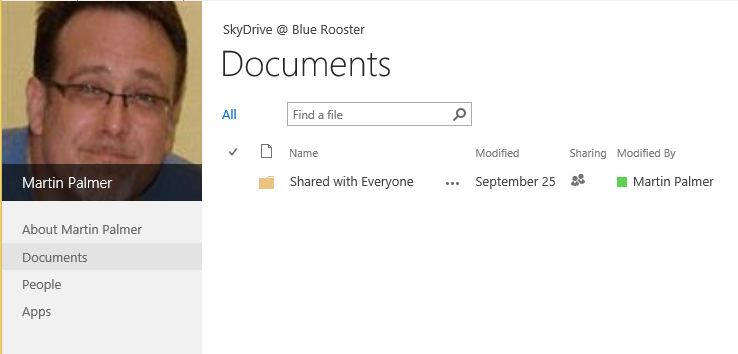

Other Profile

The Quick Launch when viewing someone else’s profile. Blog is missing from this screen shot because this profile has not yet created a Blog.

You’ll notice a few differences here. The links that appear are About <username>, Documents, People, and Blog and Apps. Gone are the shared links from the MySite Host Quick Launch settings (Newsfeed, About Me, custom added links). Gone also is the Edit Links button, and the personal links like Tasks. Here are the urls where these links navigate to:

  • About <username>: https://companyname-my.sharepoint.com/person.aspx?accountname=i%3A0%23%2Ef%7Cmembership%7Cusername%40company%2Ecom
  • Documents: https://companyname-my.sharepoint.com/personal/username_domainame/Documents/Forms/All.aspx
  • People: https://companyname-my.sharepoint.com/mypeople.aspx?accountname=i%3A0%23%2Ef%7Cmembership%7Cusername%40company%2Ecom
  • Blog: https://companyname-my.sharepoint.com/personal/username_domainame/blog
  • Apps: https://companyname-my.sharepoint.com/personal/username_domainame/_layouts/15/viewlsts.aspx

The Documents link takes you to the SkyDrive Pro document library view in the personal site of the user being viewed. You’ll only see documents that you have rights to view, for example documents in the Shared with Everyone folder or shared specifically with you.

The People link takes you to the MyPeople.aspx page, showing you the Following/Followers of the user being viewed.

The Blog link this time does not link to MySite.aspx?Blog=1. Instead it is the full absolute url to the user’s blog if created. If no blog exists, the Blog link will not show up at all.

The Apps link is certainly a strange one. Why would you ever want to go to another user’s Site Contents page? But again, you can’t remove this without affecting the shared links that show up in the Self viewing Self scenario described above.

Personal Site Quick Launch – Self Viewing Self

When you navigate into your own personal site (SkyDrive Pro area), for example by clicking the SkyDrive link in the Suite Bar, you see an entirely different Quick Launch:

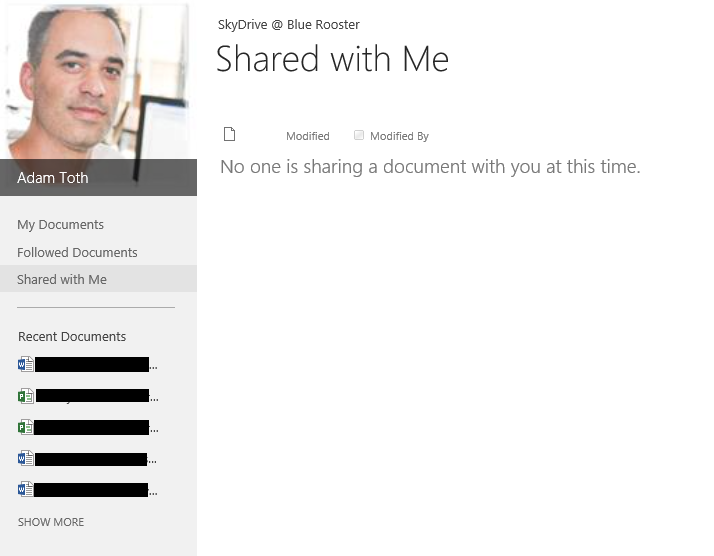

SkyDrive Quick Launch

The Quick Launch after clicking SkyDrive in the top nav.

On this Quick Launch, you see three links to documents:

  • My Documents - https://companyname-my.sharepoint.com/personal/username_domainname/Documents/Forms/AllItems.aspx
  • Followed Documents – https://companyname-my.sharepoint.com/personal/username_domainname/Social/FollowedContent.aspx
  • Shared With Me – https://companyname-my.sharepoint.com/personal/username_domainname/Documents/Forms/SharedWithMe.aspx

On Office365/SharePoint Online, you also see a Recent Documents area, with links to documents that you have recently authored or modified (someone please correct me if I’m wrong here). This is not a part of SharePoint On-premises.

Notice that you do not see the Recent Documents items appear when on the Followed Documents page. Unsure if this is a bug or not. Other than that, the Quick Launch is pretty consistent in what it shows when you go between any of these three links.

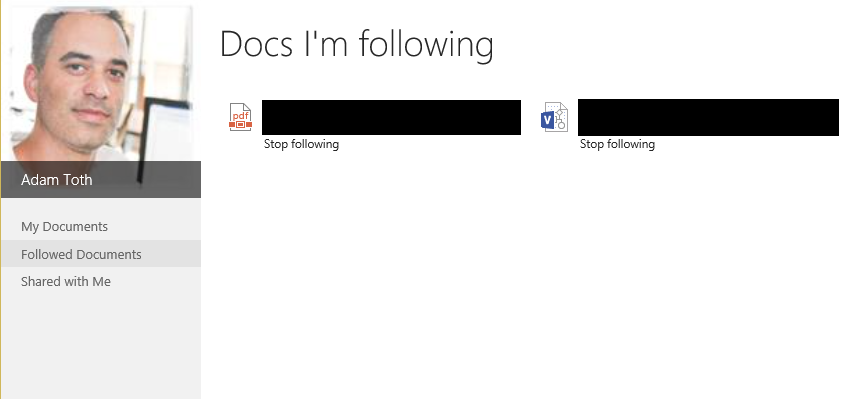

Followed Documents

Followed Documents page. Notice no Recent Documents appear.

If you go to any other page in the personal site, however, you will see the same nav that you see in the MySite Host, complete with Shared links, Blog/Apps, and any personal links like Tasks. For example, click the SkyDrive link, then the Settings icon, and Site Settings. On this settings page, you’ll see the same navigation as on the MySite Host.

Personal Site Quick Launch – Self Viewing Other

There are times when you will navigate into the personal site of another user, and in those cases, for the most part, the quick launch that you see is the same as the one you see when you view another user’s profile page in the MySite Host (person.aspx):

Other User's Quick Launch

The Quick Launch when in another user’s SkyDrive Pro/personal site.

The only caveat is that when clicking the Documents link (which takes you to that user’s SkyDrive Pro document library), the Blog link in the Quick Launch mysteriously disappears. But when clicking the Apps link it shows up again. Bug?

Improving the Experience – Adding Shared Links

As you can see, lots of moving parts in the Quick Launch, and users can easily get confused as to where they are in the site. While a comprehensive customization/overhaul of the Quick Launch is probably needed to resolve these issues, there are a few simple things you can do to bring the different experiences more into alignment.

First off, when viewing someone else’s profile, you see the Documents link, while there is no such link when viewing your own profile. Why is this? Is it because Microsoft thought it enough to have the SkyDrive link in the Suite Bar? Surely “Documents” would make more sense to a user than “SkyDrive”. In any case, you can easily add a link in the MySite Host Quick Launch Settings that will appear for all users, and you can rest assured that it will not appear in duplicate when viewing another user’s profile.

The challenge here of course is to get the right url. The link to a person’s SkyDrive Pro document library is different for every user (https://companyname-my.sharepoint.com/personal/username_domainame/Documents/Forms/All.aspx). Luckily, we have the magic of a little redirection utility that Microsoft has built.

MySite.aspx MySiteRedirect

In the Layouts directory is a page called MySite.aspx. This is a special redirection page. It’s job is to assess where you want to go inside of a personal site or MySite Host, and take you directly to your version of that page, inside your own personal site if necessary. If you hit this page with no QueryString parameter, you’ll either get redirected to your personal site if it’s created, or back to your profile page in the MySite host.

This page does have a special QueryString parameter (MySiteRedirect) that it listens for as well, to take you to specific pages. After looking through reflector, I was able to decipher the possible values that it will accept:

  • https://companyname-my.sharepoint.com/_layouts/15/MySite.aspx?MySiteRedirect=FollowedDocuments – Takes you to the Document’s I Follow page in your personal site.
  • https://companyname-my.sharepoint.com/_layouts/15/MySite.aspx?MySiteRedirect=SharedDocuments – Takes you to the Shared With Me page in your personal site.
  • https://companyname-my.sharepoint.com/_layouts/15/MySite.aspx?MySiteRedirect=AllDocuments – Takes you to the Document library in your personal site, or the same as clicking on SkyDrive in the top nav.
  • https://companyname-my.sharepoint.com/_layouts/15/MySite.aspx?MySiteRedirect=AllTasks – Takes you to the My Tasks page in your personal site.
  • https://companyname-my.sharepoint.com/_layouts/15/MySite.aspx?MySiteRedirect=AllSites  – Takes you to the Sites I’m Following/Suggested Sites page in your personal site.

With this in mind, you can use the MySiteRedirect=AllDocuments QueryString parameter to provide a “Documents” link to all users in the MySite Host Quick Launch.

Another helpful shared link to add would be a “People” link. This appears when you are viewing someone else’s profile, and takes you to the MyPeople.aspx page. Like “Documents”, you don’t see this link when you view your own profile or Newsfeed. The only way to get to this page to see the people that you yourself are following is to click on the number in the stat counter on the Newsfeed page:

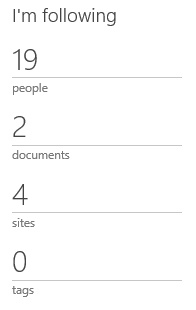

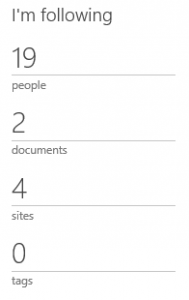

Newsfeed Counter

Clicking on the number for People is the only way to see the People you follow.

To make this a bit better, you can add a shared link to the MySite Host Quick Launch Settings, that points to the MyPeople.aspx page. In the screen below, I have added the Documents and People links, and now the nav is a little more consistent with the nav when viewing someone else’s profile.

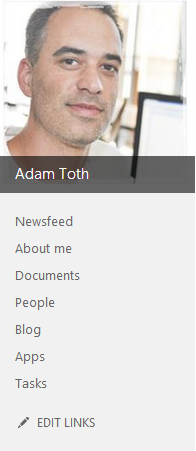

Shared Links

Shared Links

Summary

The Quick Launch of the personal/social areas in SharePoint 2013 is a pretty big UX mess, but hopefully after reading this post, you are a little more comfortable with how it works and operates, and what your options are for making it more consistent.
